3.5 Tables

Using the text editing tools in Joomla.

Prerequisites

Administrator access to a Joomla site (version 5 or above). See 1.0 Admin Login.

Tables

In this tutorial we will create and save a new article for demonstration purposes, and then delete the article. You may use an existing article on your site if you choose.

Steps

  1. Login to Joomla as an administrator and navigate to the Home Dashboard.
  2. In the left side menu, expand Content and click on Articles.
  3. Click on the New button. A new-article form appears.
  4. Enter a title then click into the text editing area.
  5. Expand the toolbar by clicking on the ellipsis icon.
    • The toolbar adapts to the browser width. The configuration and position of icons may be different than shown here.
  6. The table icon is a dropdown menu. Expand the menu and hover over the first option, Table.
    • A grid pops up to the right.
  7. Hover over the grid to define the desired size of the table, then click to insert a table.
  8. Click into a cell to enter content.
  9. Tapping the Tab key advances the cursor to the next cell.
    • Tapping the Tab key in the last cell of the table will add a row.
  10. When the cursor is in any cell, a contextual menu appears below the table.
    • Here you can add or delete rows or columns.
    • Hover over the icons to reveal their function.
  11. Adjusting column and table width.
    • Hover over the border line dividing two columns and note the cursor changes.
    • Click and drag the border left or right to change the width of a column.
    • Dragging the far right border adjusts the width of the table.
  12. Save and preview your article by clicking the Save button followed by the Preview button.
    • A popup frame of your article appears.
    • Scroll down to examine the table.
    • Note there are no borders between the table cells.
    • Close the preview window.
  13. Add cell borders
    • Click into the top-left cell and drag down and to the right to highlight all the cells in the table.
    • Right-click in any cell and open the Cell Properties window.
    • Click on Advanced. Set the Border width to 1px and the Border style to Solid.
    • Save and close the form.
    • Save the article and preview.
    • Note that all the cells are formatted the same. Next we'll format the table heading.
    • Close the preview window
  14. Set the table header row.
    • Highlight the top row of the table by clicking into the top left cell and drag to the right while holding down the mouse button.
    • Right-click in any of the highlighted cells.
    • Hover over the Cell option then click on Cell Properties.
    • Under Cell Type choose Header Cell.
    • Under Horizontal align choose Center then save.
    • Note that the header cell contents are centered and formatted with bold text.
    • Save the article and preview.
    • Note that the cell content is tight against the cell borders.
    • Close the preview window.
  15. Adjust the cell padding.
    • Right-click anywhere in the table and select Table Properties.
    • Enter 5px under Cell padding.
    • Save the article and preview.

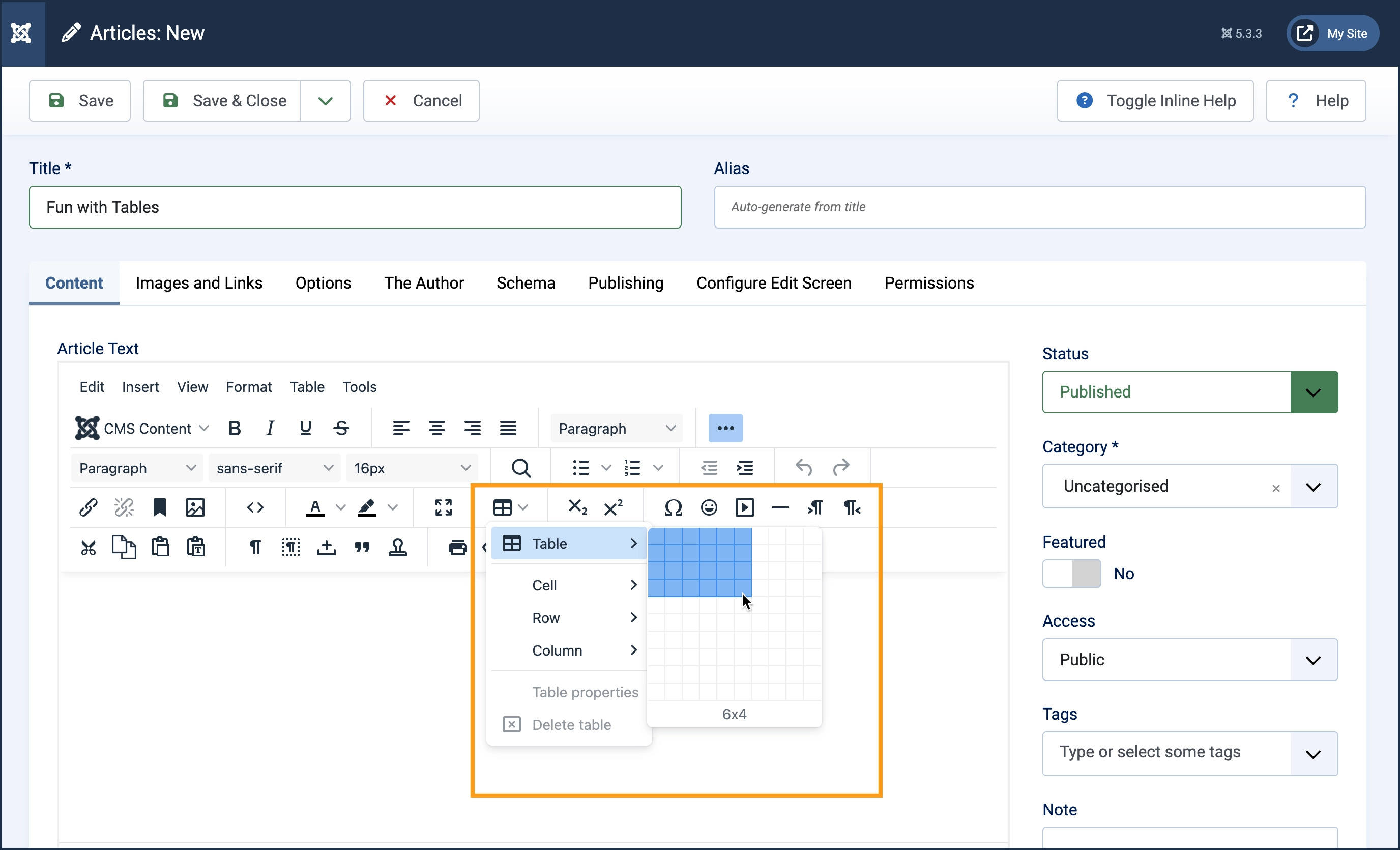

Screenshot of table selection grid
Inserting a table—Selecting table size

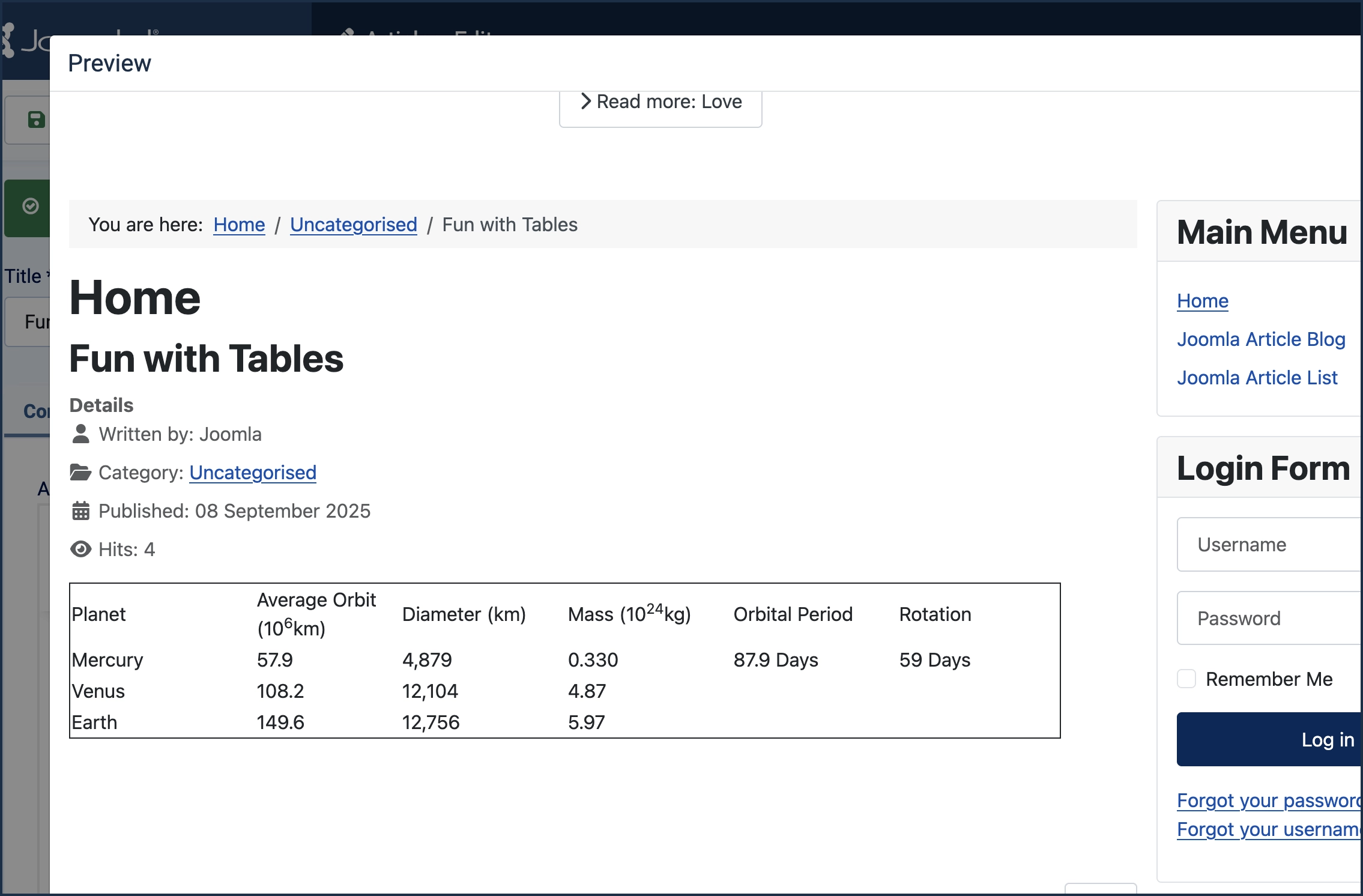

Screenshot of previewing the table displays an unformatted table.
Previewing the table before formatting

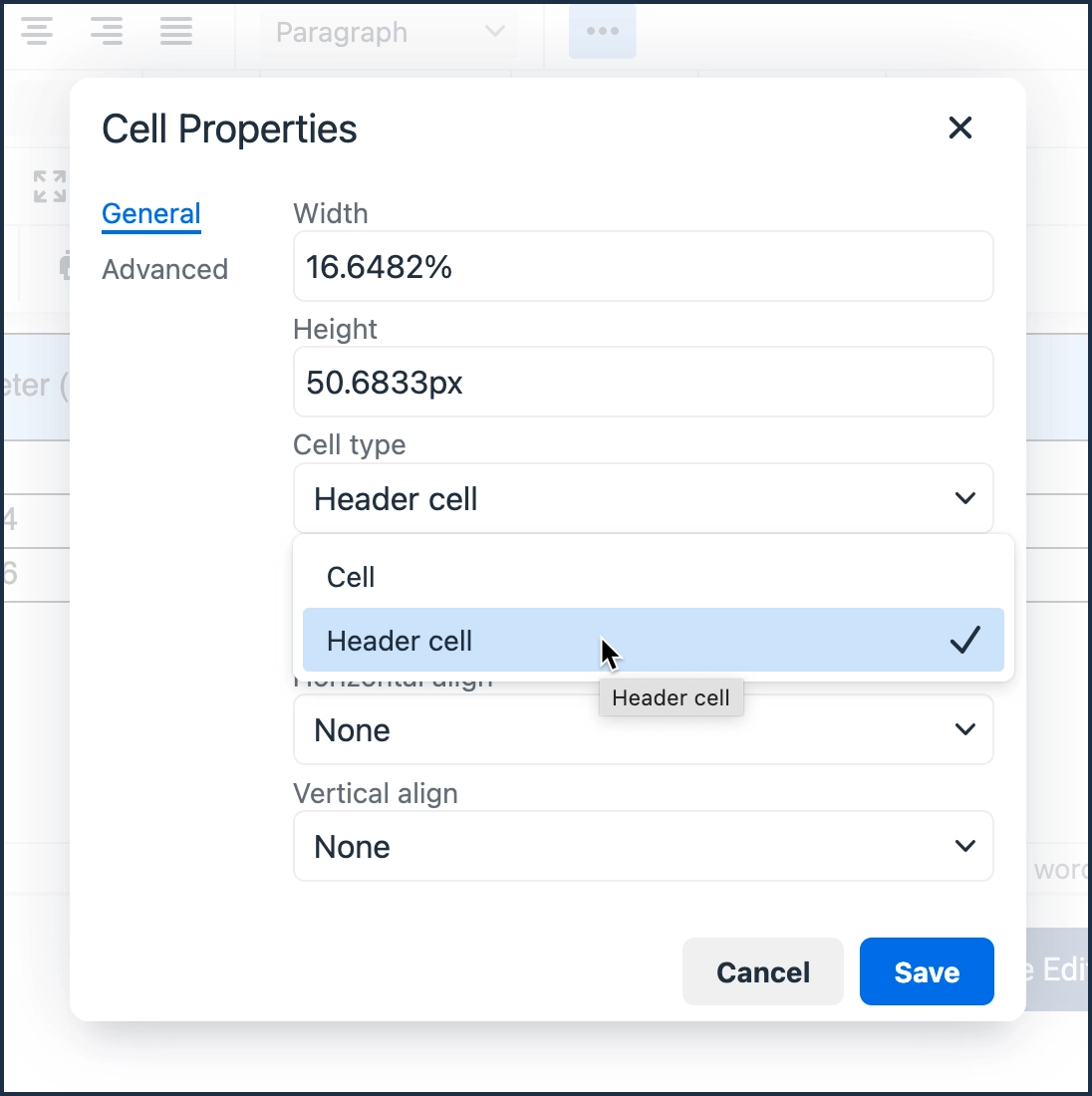

Screenshot of the cell formatting form with header cell being applied
Formatting the header cells

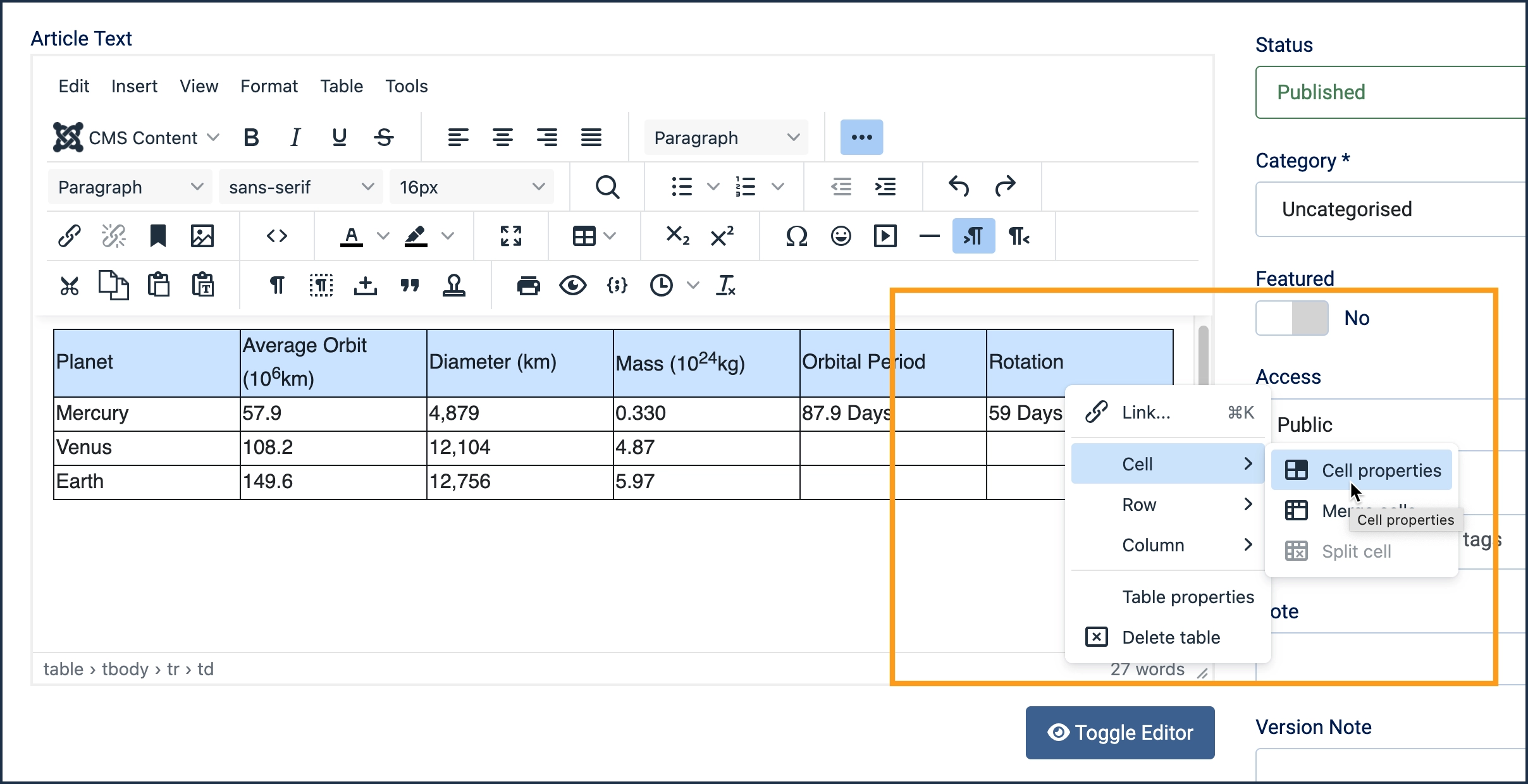

Screenshot of the cell properties form
Accessing cell properties form

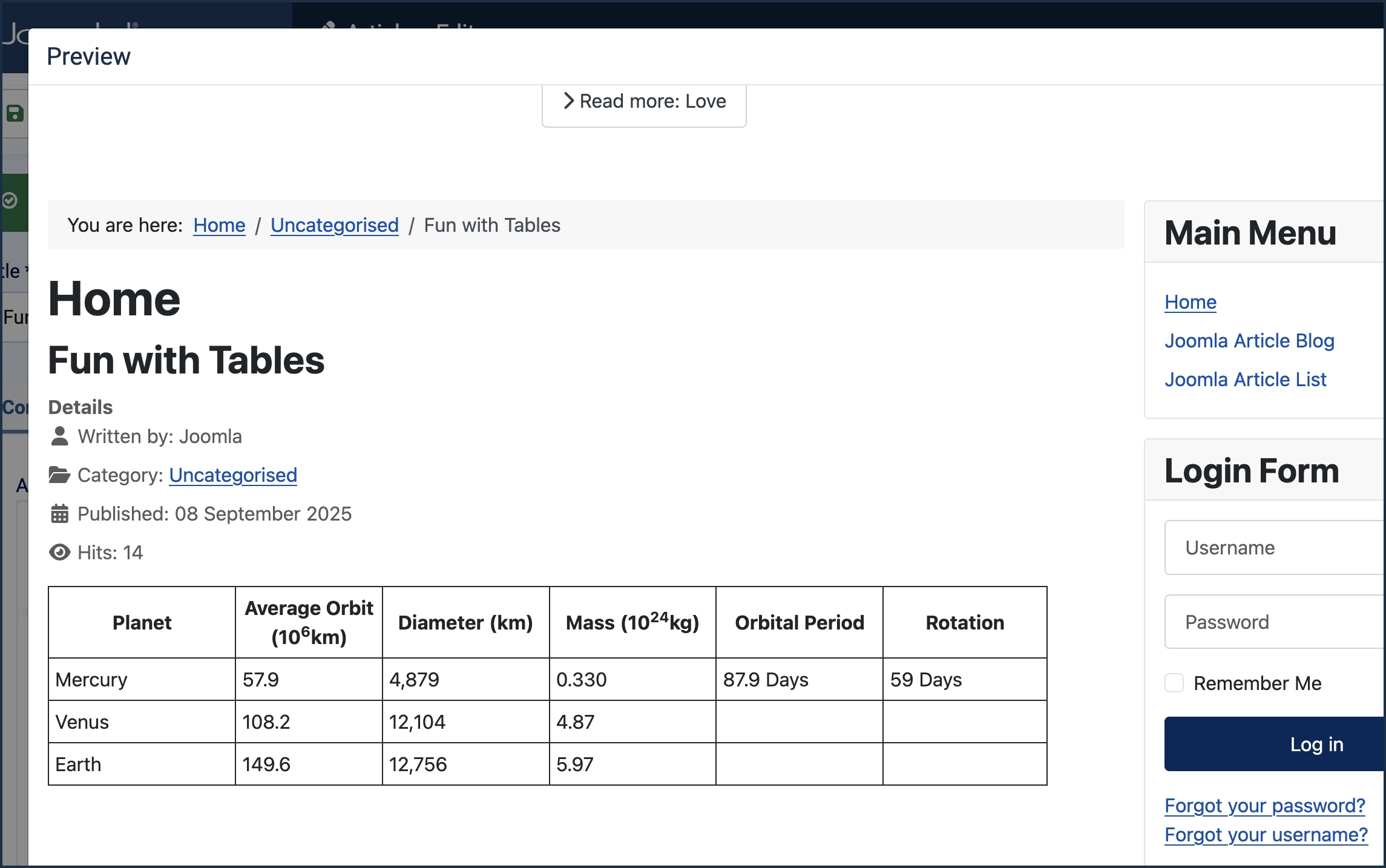

Formatted table being previewed showing header row in bold, cell borders, and cell padding
Table formatted with header row, cell borders, and additional cell padding.

Concepts

  • Setting header cells is an important semantic and accessibility issue. Creating Accessible Tables
  • Browsers will adjust table and cell widths differently depending on browser width and window size.
  • Tables are intended for displaying tabular data. At one time it was popular to use tables for layout to position content on a page. They should never be used for this purpose.
